FEATURES

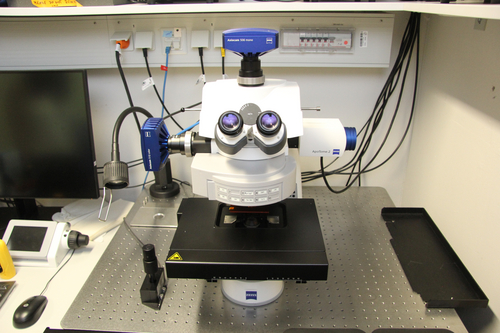

Zeiss Axio Imager.Z2 upright motorized stand with an ApoTome.2 for improved z-contrast
Suitable for brightfield (DIC, darkfield) and fluorescence imaging
Suitable for fixed samples and tissue sections
ILLUMINATION
Transmitted light (LED)
Fluorescence (metal halide, HXP, 200C)
Reflected light structured illumination: Zeiss ApoTome.2
FILTERS
Stand: 10x motorized reflector changer:
pos 1: Analyser DIC / Transmitted light
pos 2: Cy3 ET-set (AHF F46-004: EX BP 545/25, BS 565, EM BP 605/70)
pos 3: Apotome calibration grid
pos 4: DAPI (Zeiss FS49: EX BP 359/48, BS 395, EM BP 445/50)
pos 5: CFP (Zeiss FS47 HE: EX BP 436/24, BS 455, EM BP 480/40)
pos 6: GFP (Zeiss FS38 HE: EX BP470/40, BS 495, EM BP 525/50)
pos 7: YFP (Zeiss FS46 HE: EX BP500/24, BS 515, EM BP 535/30)
pos 8: TxRed (Zeiss FS45: EX BP 560/40, BS 585, EM BP630/75)
pos 9: Cy5 (Zeiss FS50: EX 640/30, BS 660, EM BP 690/50)
pos 10: empty
spare cube: YFP ET-set (AHF F49-003: EX BP 500/20, BS 515, EM 535/30)
DETECTION
Zeiss AxioCam 512 color, Color CCD camera (SN 207190625)
Zeiss AxioCam 506 mono, Monochrome CCD camera (SN 118192132)
OBJECTIVES
Zeiss Plan Apo 10x (0.45 NA) Air
Zeiss Plan Apo 20x (0.8 NA) Air
Zeiss Plan Apo 40x (0.95 NA) Air
Zeiss Plan Neofluar 63x (0.95 NA) Air
Zeiss Plan Apo 100x (1.4 NA) Oil DIC
SOFTWARE
Zeiss ZEN pro 3.8 (version 3.8.99.01000)
